Spirolab

For Healthy Lungs

Spirolab

Oximetry Mode

Features

Spirolab is one of the most technically sound spirometer from MIR, one of the leading players in spirometry across the globe.

Portable, Desktop and PC-Based Spirometer, with Oximetry Option

REAL-TIME TEST- Spirometry : FVC, VC, IVC, MVV, PRE-POST Bronchodilator comparison Oximetry (optional) : Spot test (SpO2, Pulse)

CARRY EVERYWHERE

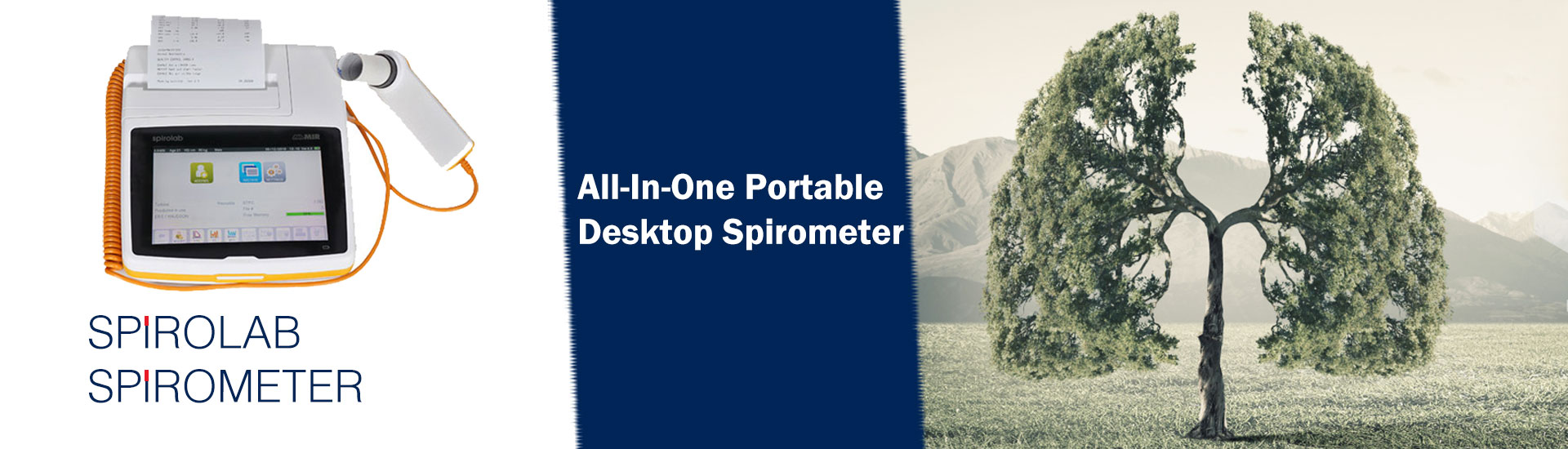

High-Resolution 7-inch Touchscreen, all-in-one Spirometer with embedded printer and Oximetry option.

Long lasting NiMH battery, rechargeable via power supply

Internal Storage up to 10.000 Spirometry tests or 300 hrsoximetry

Dimensions: 8.6 x 8.3 x 2"; (220 x 210 x 51 mm)

Embedded Printer (for thermal paper 112 mm)

PC CONNECTIONConnect to your PC via USB and Bluetooth 2.0

COMPLIANCE WITH ATS/ERS 2019 And other Standards including ISO 26782 (for Spirometry), ISO 23747 (for PEF), ISO 80601-2-61 (for Oximetry), and more

Windows-based complete and powerful software solution for Spirometry, Oximetry

Easy follow-up of your patient database, including Patient Trend Charts and Search engine for instant access to data.

Specialized and customizable Printout.

Technical Data

Power Supply Rechargeable battery and mains power
Temperature sensor semiconductor (0-45o C)
Flow sensor bi-directional digital turbine
Flow range ± 16L/s
Volume accuracy ± 3% or 50mL
Flow accuracy ± 5% or 200mL/s
Dynamic resistance < 0.5 cmH2O/L/s
Connectivity USB 2.0, Bluetooth ® 2.1
Display 7" inch colour touch screen LCD, 800x480 resolution
Mouthpieces Ø 30 mm (1.18 inch)
Dimensions 220 x 210 x 51 mm (8,66 x 8,26 x 2in)
Weight 1450 g (battery pack included) (3,1lb)

Benefits

FVC, FEV1, IVC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters

Long life Rechargeable Battery

Color Touch Screen 7 inches display

Direct connection to external USB Printer

10,000 Spirometry tests or 500 hours of Oximetry recording

Wireless Real Time test on PC via Bluetooth

Fast and silent built-in printer with customizable printout format

Each function can be activated by a simple touch on the intuitive bar menu always present on the screen

Suitable for children

Other Available Models

MINISPIR SPIRODOC SPIROBANK SMART
Device Type PC Based Pocket Size Smart
Real Time PC Yes Yes No
Power Supply USB Socket of PC Rechargeable Battery 2 batteries AAA
Memory On Device Uses PC memory 10,000 No
Connectivity USB USB & Bluetooth 2.0 Bluetooth 4.0
Pulse Oximetry No Optional Optional
Sensor Turbine Turbine Turbine
Parameter FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75 , Lung Age, Extrap. Volume, FET, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, VC, IVC, IC, ERV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV FVC, FEV1, FEV1/ FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%, FET,Estimated Lung Age, Extr. Vol., FIVC, FIV1, FIV1/ FIVC%, PIF, VC, IVC, IC, ERV, FEV1/ VC%, VT, VE, Rf,ti, te, ti/t-tot, VT/ti, MVV measured MVV (calculated) PEF, FEV1, FVC, FEV1/FVC, FEF2575 FEV6, VEXT, DTPEF, FEF75, FEF25, FEF50
Reusable Sensor Yes Yes Yes
Disposable Sensor Yes Yes Yes
Walk Test No Yes No
Display Not require 3" No
Carrying Case Canvas Pouch Canvas Pouch No
Post BD Yes Yes No
USB To PC Yes Yes No
Sleep Test No Yes No

Spirolab Accessories

Bacterial-viral Filter

Disposable Mouthpiece

Flowmir Disposable Turbine

Paper Rolls

Plastic Noseclip
